Mastering multicolor 3D printing with PrusaSlicer: a comprehensive guide

If you're a 3D printing enthusiast, you'll know that the world of additive manufacturing is continually evolving, offering new possibilities and features to enhance your creations. One such feature that has gained prominence is the ability to schedule a filament change at a specific layer using PrusaSlicer. In this article, we'll delve into this exciting functionality, exploring how it can be harnessed to create stunning multicolored 3D prints.

Understanding the Basics

PrusaSlicer, a popular slicing software, empowers users with the capability to introduce color changes in their 3D prints seamlessly. This feature is invaluable when your goal is to produce intricate multicolored models. The process is straightforward: PrusaSlicer pauses the print job automatically as soon as it detects the designated layer for the color change, triggered by the G-code command (M600). It then prompts the user to perform the filament change.

Setting the Stage

Let's walk through the steps to incorporate a color change into your 3D print:

1. Open PrusaSlicer and navigate to the Preview window.

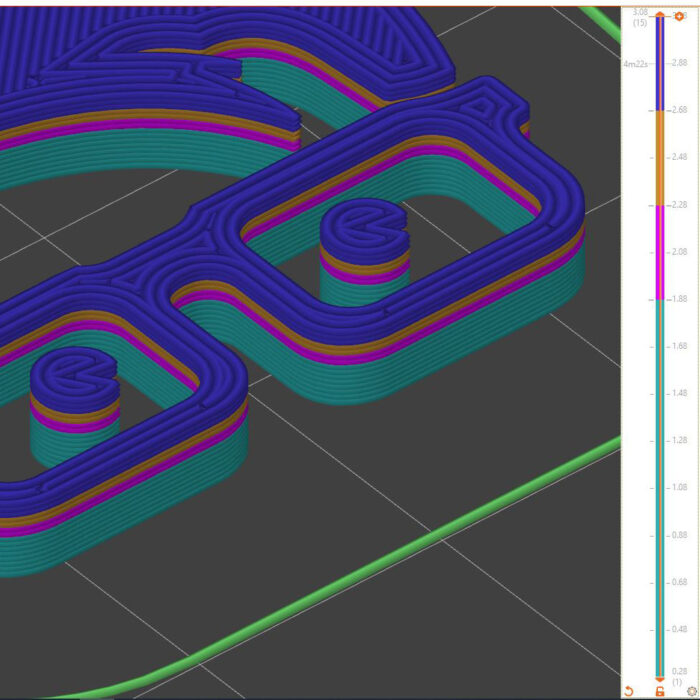

2. On the right-hand side, you'll find the layer slider. Use it to select the specific layer where you want the color change to occur.
3. Now, there are two ways to insert a color change:
   • Left-click on the orange plus icon to add a color change with a random preview color.
   • Right-click on the orange plus icon and select "Add color change." This action will open a color picker window, allowing you to choose your desired color for a more precise preview.
4. You can repeat this process to introduce multiple color changes at different layers, giving your print a dynamic and colorful appearance.
5. Should you wish to remove a color change, simply move the slider to the target layer and left-click on the grey cross icon to delete it.

Fine-tuning the color change

It's important to note that you have the flexibility to edit the color change preview color to match your vision. To do this:

• Right-click anywhere on the colored bar representing the color change.
• For the first color change, click on the colored rectangle next to the filament profile name in the top right corner. This step allows you to adjust the color to your liking.

Keep in mind that these preview colors serve only as a visual aid for your final print and do not affect the generated G-code.

Time estimates for color changes

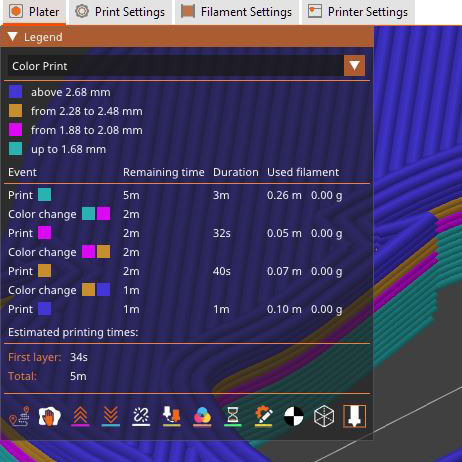

PrusaSlicer simplifies your workflow by providing time estimates for each color change you incorporate into your project. When you add one or more color changes, the Platter legend will switch to "Color Print" mode, displaying estimated completion times for each change. Alternatively, you can manually switch to this mode using the "View" select box located in the bottom left corner. This feature enables you to plan precisely when to check on your printer and execute the color change seamlessly.

In conclusion, PrusaSlicer's ability to schedule filament changes at specific layers opens up a world of creative possibilities for 3D printing enthusiasts. By following the steps outlined in this guide, you can master the art of multicolored 3D printing and bring your designs to life with stunning color transitions. Happy printing!
